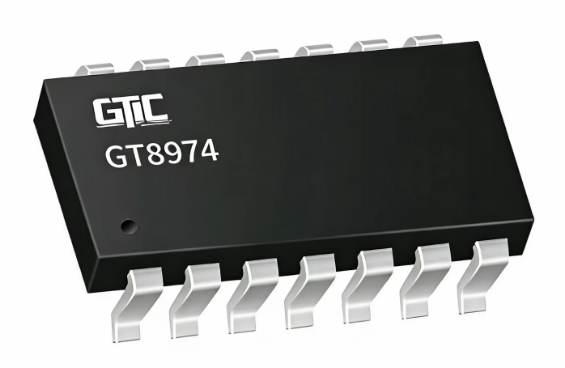

[Product Release] The GT897X is an ultra-high-speed comparator with RRIO and push-pull output.
2026-03-09 21:35:05
Product
The GT897X series is a high-performance, rail-to-rail input, push-pull output ultra-high-speed comparator family.The GT897X comparators can operate from a single 2.5V to 5.5V supply, as well as from dual supplies ranging from ±1.25V to ±2.75V.The input common-mode range extends 0.1V beyond the supply rails.The GT897X features a low propagation delay of 10ns while consuming only 2mA per channel, and can directly drive CMOS or TTL logic.
Features
Supply Voltage: 2.5V ~ 5.5V (±1.25V ~ ±2.75V)
Input Common-Mode Range: (V-) - 0.1V ~ (V+) + 0.1V
Input Offset Voltage: ±6mV (max)
Common-Mode Rejection Ratio: 72dB
Power Supply Rejection Ratio: 73dB
Quiescent Current: 2mA (typ)
Output Short-Circuit Current: 63mA
Propagation Delay: 10ns
Temperature Range: -40℃ ~ 125℃
Package: SOT23-5, SC70-5, SOP8, MSOP8, TSSOP14, SOP14

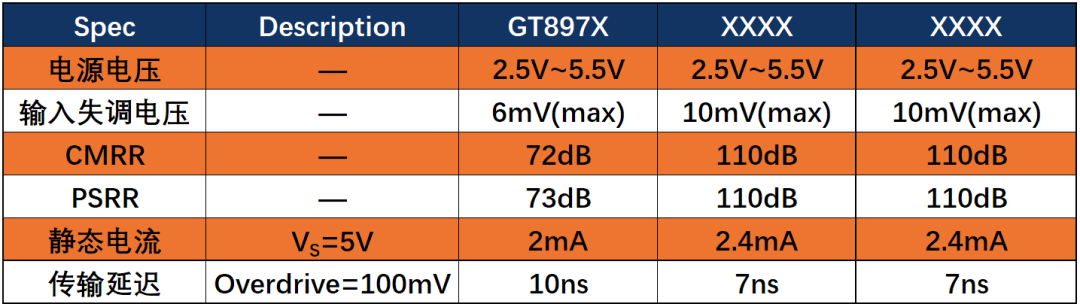

Advantages
The GT897X features an ultra-high-speed propagation delay of 10ns.
It supports both single and dual power supply operation.
It is available in multiple packages to meet various design requirements.
Application
Line Receiver
