【Chip Release】GT811X is a Low-Voltage Low-Power Operational Amplifier
2026-06-05 19:51:03
Product
The GT811X series of products offer low-voltage operation, rail-to-rail input and output, as well as excellent speed/power ratio. They feature outstanding bandwidth (18kHz) and a 7.7V/ms slew rate. These operational amplifiers are unity gain stable and have ultra-low input bias current.
The GT811X series operational amplifiers can operate within the temperature range of -40°C to +125°C, and can be used in single power supply (1.4V - 5.5V) or dual power supply (±0.7V - ±2.75V) configurations. The GT811X series has a low input mismatch voltage of ±3mV (max), and also has 750nA of static current and 120dB of open-loop gain. These characteristics make these operational amplifiers highly suitable for various applications, such as sensors, audio, active filters, A/D converters, communication, test equipment, cellular phones and cordless phones, laptops and tablets, photodiode amplification, battery-powered instruments.
Regarding packaging, the GT8111 offers SC70-5, SOT23-5 and SOP8, MSOP8 packages. The GT8112 offers SOP8, MSOP8 and TSSOP8 packages. The GT8114 offers SOP14, TSSOP14 packages.
Features
Power supply voltage: 1.4V to 5.5V (±0.7V to ±2.75V)
Input common-mode range: -0.1V to 5.6V
Input offset voltage: ±3mV (max)
Input noise: 180nV at 1kHz
Open-loop gain: 120dB
Gain bandwidth product: 18KHz
Differential slew rate: 7.7V/ms
Common-mode rejection ratio: 80dB
Power rejection ratio: 80dB
Static current: 750nA (typ)
Output short-circuit current: 50mA
Temperature range: -40°C to 125°C
Package: SOT23-5, SC70-5, SOP8, MSOP8, TSSOP8, SOP14, TSSOP14

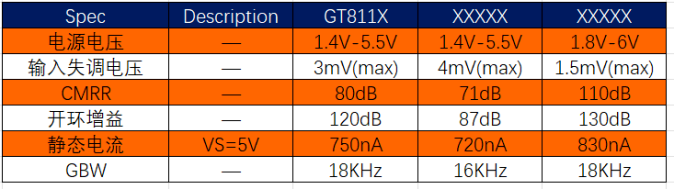

Advantages
The GT811X has a low input offset voltage of ±3mV (max) and a small static current of 750nA.
It supports single and dual power supply.
It supports various packages to meet different design requirements.
Application

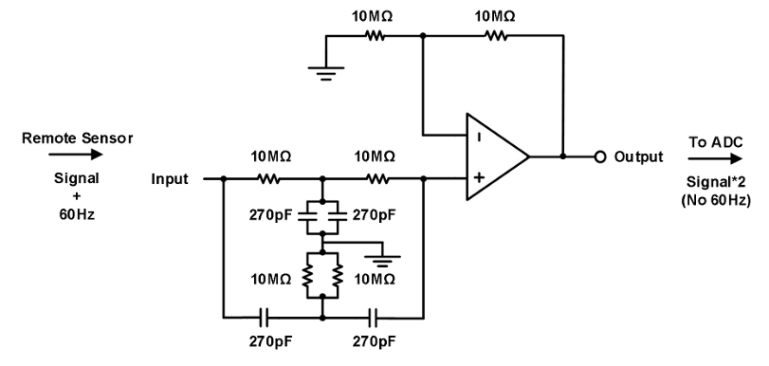

Noise suppression circuit
About Gtic
GTIC is a precision signal chain chip company focused on the design and sales of analog and high-precision signal chain products. Its diverse portfolio is widely used in industrial control, smart electric vehicles, test and measurement, renewable energy, smart manufacturing, intelligent buildings, environmental protection, and digital healthcare.
