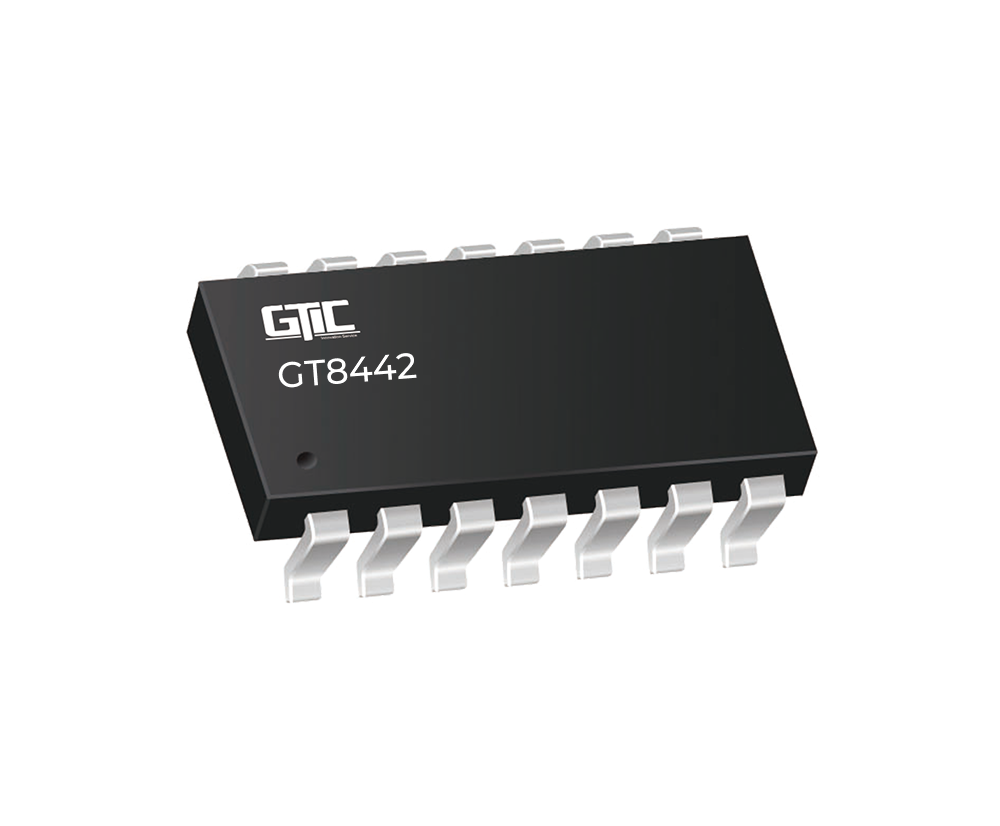

GT8442
The GT844X is a series of the newest high-supply voltage amplifiers with low offset, low power, and stable high-frequency response. The GT844X incorporates proprietary and patented design techniques to achieve excellent AC performance with 10-MHz bandwidth and 20 V/μs slew rate.
The combination of features makes these devices optimal for industrial control, motor control, and other applications requiring robust amplifiers with high immunity to power supply noise.
Features
- Supply Voltage: 3.2 V to 36 V
- Differential Input Voltage Range to Supply Rail, can Work as Comparator
- Input Rail to −VS
- Fast Response:
- Bandwidth: 10 MHz
- Slew Rate: 20 V/μs
- High PSRR+: 80 dB at 100 KHz
- Offset Voltage: 1 mV Maximum at 25°C
- Operating Temperature Range: −40°C to 125°C
Applications
- Digital Servo Control Loops
- Machine and Motion Control Devices
- Photodiode Pre-Amp
- Industrial Process Control
- Temperature Measurements
- Strain Gage Amplifier
- Medical Instrumentation
